Application Fields
Fisheries industry
Sea food preservation
Product Features
According to standard of pressure vessel to design and manufacture of ice maker, solid, safe and reliable;
Direct low temperature continuous ice-making, ice temperature can be reached to -10 ℃, high efficiency;
Degree of supercooling of flake ice is good, dry, thickness is reached to 2.5 mm;
Optimal Designing of refrigeration system,stable operation and low failure rate;
Using environmental protection refrigerants, environmental protection, high efficiency and energy saving
Using the special way of water supply and refrigeration system design, the biggest can be withstanding 35 ° rocking degree.
Evaporator & base using alloy materials such as stainless steel, corrosion resistance, long service life;
Electric control panel,circuit meet the Marine electrical standards, anti-corrosion, high security;
Full automatic control, ice full automatic stop, realizing unattended;
Beautiful shape, the overall rational layout, details, strive for perfection.

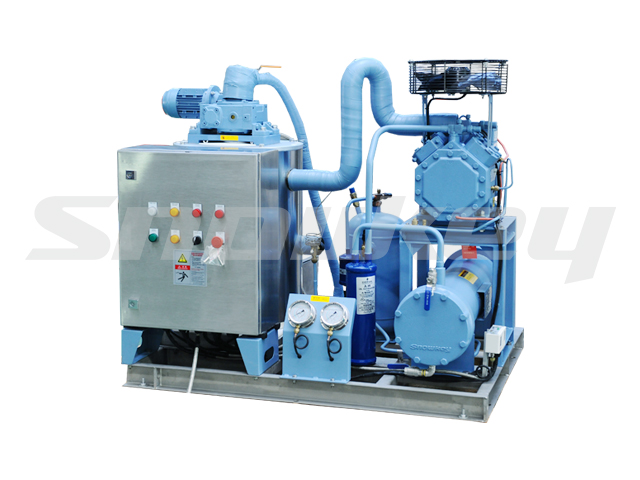

ellipsis">Flake Ice Machine On Board SFM50W(5T/D)
NO.SFM50W
ellipsis">Flake Ice Machine On Board SFM50W(5T/D)
NO.SFM50W
Operating conditions
Power Requirements: International general standard of the whole system of electric power supply
Standard working conditions of ice production: water supply temperature 20 ℃, ambient temperature 33 ℃
Applicative operating mode, water temperature 0 to 35 ℃, ambient temperature 5 ~ 40 ℃
Ice outlet temperature:-10℃， refrigerant:R404A,R507A
Performance parameters
Ice Output:1600kg/d
Refrigeration capacity:6KCal
Condensing temperature:38℃；
Evaporating temperature:-28℃
Water pump:0.04kw
Reducer:0.37kw
Running power consumption:5.6kw
Installed power:6.5kw
Water consumption of ice making:67L/H
Ice falling outlet Ø：460mm
Overall dimensions: L1420mm*W1150mm*H1305mm
Weight:900KG
(Due to technical innovation,the above parameters will be changed ,If necessary, please contact our sales office)
